About The CF-LF9

A precision built custom forged wheel from CookeForged™, the CF-LF9 is available in 17 to 26 inch sizes with brushed, polished, or anodized finishes and fitment matched to your vehicle. Get a quote today.

Starting at 850$

Get A Qoute

Description

Meet the CF-LF9, a precision engineered custom forged wheel from CookeForged™. Built to order in Miami, Florida, the CF-LF9 pairs lightweight forged aluminum construction with a design that stands out on the street and holds up under hard driving.

Performance and Strength

  • Forged aluminum alloy for maximum durability at minimum weight
  • Improved acceleration, braking, and handling compared to cast wheels
  • Suitable for street, show, and track builds

Custom Fitment Options

  • Sizes from 17 to 26 inches, built to your specification
  • 4 lug, 5 lug, 6 lug, and 8 lug bolt patterns available
  • Fitment matched to your exact make, model, and stance

Finish Choices

  • Brushed, polished, and anodized options
  • Custom coatings and colors on request
  • Every set finished by hand in Miami

Ready to build your CF-LF9? Request a free quote and our team will design the perfect setup for your vehicle.

Additional information

Rim Size

24” 26”

Share

Precision Wheel Fitment

Wheel Sizing & Offsets

Find available wheel widths, bolt patterns and offset ranges for Cooke Forged performance wheels. Need a specification outside the options listed below? Our custom fitment program can help create a setup tailored to your vehicle.

Wheel Face Options

Concave Profile Selection

Available concavity depends on wheel width, offset and vehicle clearance. Deeper profiles create a stronger inward spoke sweep toward the center hub.

Profile availability varies
by wheel specification.
Deep concave Cooke Forged performance wheel profile

Deep

A balanced recessed center with a strong performance stance.

Super deep concave Cooke Forged performance wheel profile

Super Deep

Increased hub recession creates a noticeably stronger spoke sweep.

Ultra deep concave Cooke Forged performance wheel profile

Ultra Deep

Maximum visual depth for fitments that allow aggressive concavity.

Available Specifications

Select Your Wheel Diameter

Profiles F Flat D Deep SD Super Deep M Mid
Wheel Width Bolt Pattern & Offset
19 x 8.5"
F 5x112 +30 / +42
F 5x114.3 +32
F 5x120 +30
F Custom Blank +20 to +45
D Custom Blank -6 to +40
19 x 9"
F Custom Blank +26 to +51
D Custom Blank 0 to +46
19 x 9.5"
D 5x112 +35 / +45
D 5x114.3 +25 / +40
D 5x120 +40
D Custom Blank +6 to +52
19 x 10"
D 5x120.65 +28
D Custom Blank +12 to +58
19 x 10.5"
D 5x114.3 +45
D Custom Blank +18 to +64
Wheel Width Bolt Pattern & Offset
20 x 8.5"
F Custom Blank +10 to +45
20 x 9"
F 5x112 +25 / +32
F 5x114.3 +32 / +38
F 5x120 +35
F Custom Blank +15 to +50
D Custom Blank -10 to +38
20 x 9.5"
D 5x114.3 +25
D 5x120 +20
F Custom Blank +21 to +56
D Custom Blank -4 to +44
20 x 10"
D Custom Blank +2 to +50
20 x 10.5"
SD 5x130 +20
D 5x112 +30 / +45
D 5x114.3 +45
D 5x120 +38
D Custom Blank +8 to +56
SD Custom Blank -10 to +30
20 x 11"
SD 5x115 -6
D 5x120 +40
F Custom Blank +40 to +78
D Custom Blank +14 to +62
SD Custom Blank -4 to +36
20 x 11.5"
D Custom Blank +20 to +68
20 x 12"
SD 5x120.65 +48
SD Custom Blank +8 to +48
Wheel Width Bolt Pattern & Offset
21 x 9"
F 5x112 +25 / +35
F 5x120 +30
F Custom Blank +15 to +50
21 x 9.5"
F Custom Blank +21 to +56
D Custom Blank -10 to +35
21 x 10"
F Custom Blank +26 to +62
D Custom Blank -4 to +42
21 x 10.5"
D 5x112 +25 / +35
D 5x120 +30
D Custom Blank +2 to +48
21 x 11"
D Custom Blank +9 to +54
21 x 11.5"
D Custom Blank +15 to +60
21 x 12"
D 5x120 +52
D Custom Blank +21 to +66
Wheel Width Bolt Pattern & Offset
22 x 9"
F 5x112 +25 / +32
F 5x114.3 +32
F 5x120 +30
F Custom Blank +15 to +50
22 x 9.5"
D 5-Lug Blank -10 to +35
D 5x112 +15
F 5-Lug Blank +21 to +56
22 x 10"
D 5-Lug Blank -4 to +42
F 5-Lug Blank +26 to +62
22 x 10.5"
D 5-Lug Blank +2 to +48
D 5x112 +25
D 5x112 +35
D 5x120 +38
D 5x127 +27
D 5x127 +35
D 5x130 +20
D 5x114.3 +32
SD 5-Lug Blank -17 to +20
SD 5x112 +8
22 x 11"
D 5-Lug Blank +9 to +54
SD 5-Lug Blank -11 to +26
22 x 11.5"
D Custom Blank +15 to +60
22 x 12"
D 5-Lug Blank +21 to +66
SD 5-Lug Blank +2 to +39
Wheel Width Bolt Pattern & Offset
23 x 10"
M 5-Lug Blank +8 to +53
M 5x120 +32
23 x 10.5"
M 5x130 +25
SD 5-Lug Blank -20 to +25
M 5-Lug Blank +15 to +60
23 x 11"
SD 5x112 +14
SD 5-Lug Blank -14 to +31
23 x 12"
SD 5-Lug Blank -1 to +44

Need a custom wheel specification?

Contact Cooke Forged for custom bolt patterns, offsets and wheel configurations designed around your vehicle and fitment goals.

Discuss Your Fitment
Future Performance Technology

Flow Forming Wheels Coming Soon

Cooke Forged is preparing to expand its wheel offering with flow formed options in the future. This process is designed to create a lighter and more structurally efficient wheel barrel through controlled heat, rotation, and pressure.

Coming Soon

Flow formed wheels are not currently available from Cooke Forged. We plan to introduce this capability in the future as we continue expanding our performance wheel range.

Process Overview

How Flow Forming Works

Cast aluminum wheel mounted on a flow forming mandrel
01

Mounting & Heat Preparation

A cast wheel is mounted onto a precision flow forming mandrel, where controlled heat prepares the aluminum barrel for shaping.

Hydraulic roller applying pressure during the flow forming process
02

Hydraulic Roller Forming

As the wheel rotates, hydraulic rollers apply controlled pressure to the heated barrel and progressively shape the aluminum.

Aluminum wheel barrel stretched and compressed during flow forming
03

Barrel Stretching & Compression

The rollers continue across the rotating barrel, refining its thickness, width, and profile through controlled compression.

Flow formed wheel showing refined aluminum grain structure
04

Refined Aluminum Grain Structure

The forming process elongates the aluminum grain structure, helping produce a lighter and more structurally efficient wheel barrel.

Interested in future flow formed wheels?

Tell us what you are looking for and our team can discuss current wheel options while keeping your future fitment requirements in mind.

Contact Cooke Forged

Related Product

Related products

Request a Quote

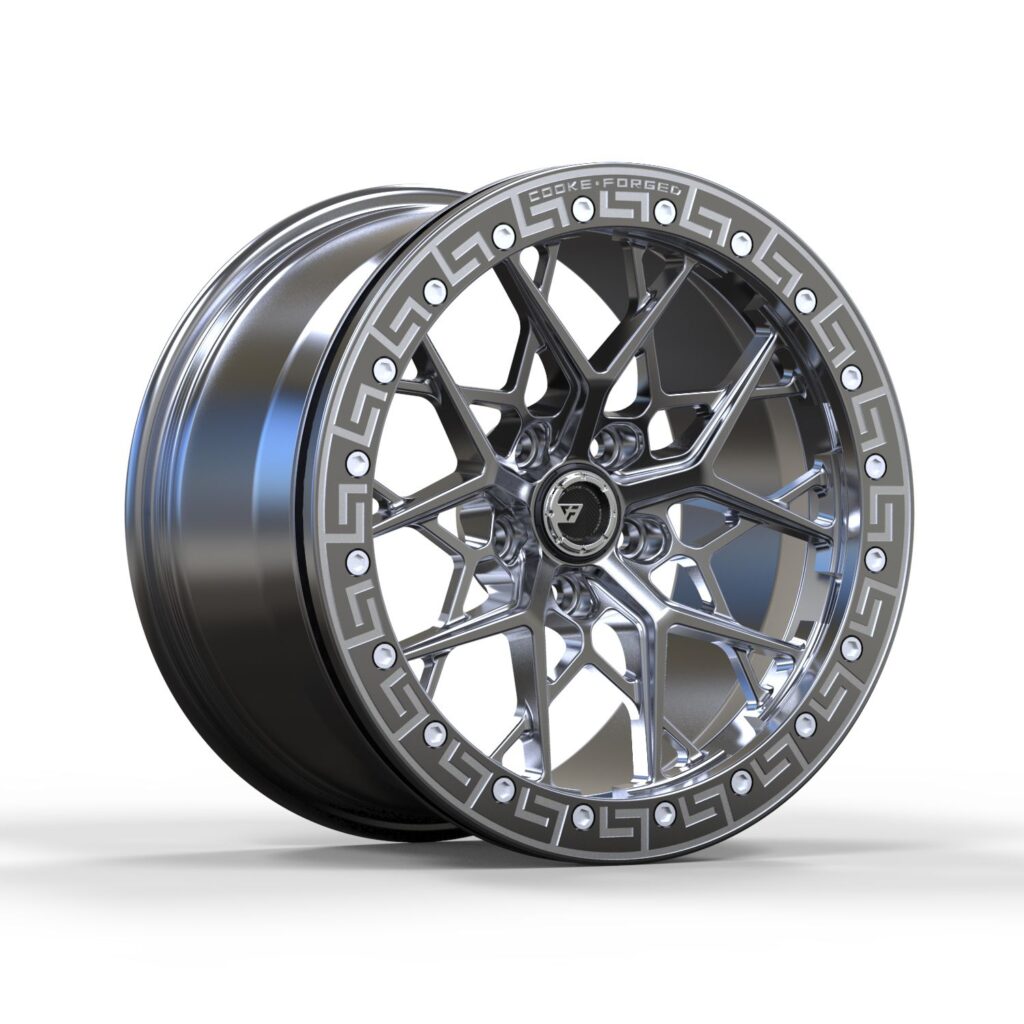

WhatsApp Image 2025-10-26 at 7.34.33 PM (4) Custom Forged Wheels by CookeForged Miami
